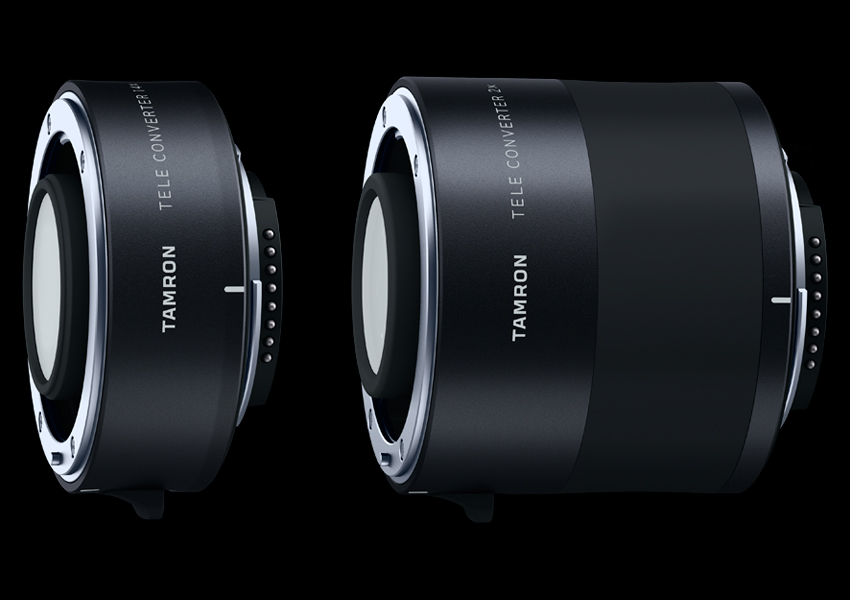

TAMRON introduced two tele converter models exclusively for select TAMRON lenses. These accessories make it easy to expand the versatility of the attached lens. TELE CONVERTER 1.4x increases the focal length by a factor of 1.4x, while TELE CONVERTER 2.0x doubles the focal length.
SP 150-600mm F/5-6.3 Di VC USD G2 (Model A022) with 1.4x tele converter
SP 150-600mm F/5-6.3 Di VC USD G2 (Model A022) with 2.0x tele converter
Although the maximum focal length is increased, the minimum object distance remains nearly the same, so the magnification ratio during close focusing is enhanced. Both tele converters are carefully designed and constructed to preserve the original superior image quality of the lens. The 2.0x model uses one LD (Low Dispersion) lens element to suppress aberrations. BBAR (Broad-Band Anti-Reflection) coatings are deployed on both models to help minimize ghosting and flare.
With a tele converter, it’s possible to capture photographs using an extended focal length.
Autofocus functions normally with compatible lenses. (Please refer to Compatible TAMRON Lens List below.) VC (Vibration Compensation) performance is maintained.
The new tele converters are ideal for use in outdoor photography when matched with any lens that has a Moisture-Resistant Construction because special seals that are dust-resistant and moisture-proof are used at every joint and seam.

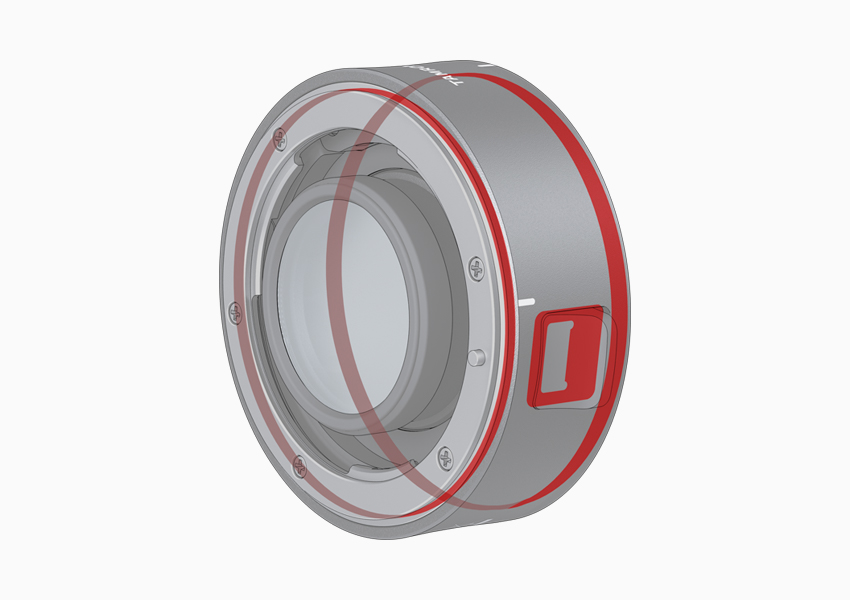

These accessories embody TAMRON's new design that’s born from the pursuit of functional beauty and achieved by smoothly blending engineering and design enhancements. Meticulous craftsmanship is applied to every detail. The new tele converters feature a metal lens barrel and share this same design concept. Both tele converters provide remarkable ease of use—even the release lever offers a comfortable touch to the photographer’s finger.
The Exterior
Technical Information
Specifications
| Model | TC-X14 |
|---|---|
| Magnification* | 1.4x |
| Optical Construction | 6 elements in 3 groups |
| Maximum Diameter |
φ70mm Canon φ62.6mm Nikon |
| Length** | 21.4mm (0.8 in) Canon and Nikon |
| Entire Length*** |
34.1mm (1.3 in) Canon 32.3mm (1.3 in) Nikon |
| Weight |
205g (7.2 oz) Canon 180g (6.3 oz) Nikon |
| Standard Accessories | Mount cap, Rear cap, Lens case |
| Compatible Mounts | Canon EF mount, Nikon F mount |
Specifications, appearance, functionality, etc. are subject to change without prior notice.
* Use of the TC-X14 tele converter reduces the effective aperture by one f/stop.
** Length is the distance measured from the camera mount face to the lens mount face.
*** Entire Length is the distance between the tip of the lens and the tip of protrusion.
Release Date
September 23rd, 2016 (Canon, Nikon)
*Please be advised of certain variances in the actual launching dates by region.
Lens Construction (6 elements in 3 groups)
Specifications
| Model | TC-X20 |
|---|---|
| Magnification* | 2x |
| Optical Construction | 9 elements in 5 groups |
| Maximum Diameter |
φ69.8mm Canon φ62.3mm Nikon |
| Length** | 53.6mm (2.1 in) Canon and Nikon |
| Entire Length*** |
66.8mm (2.6 in) Canon 65mm (2.6 in) Nikon |
| Weight |
360g (12.7 oz) Canon 305g (10.8 oz) Nikon |
| Standard Accessories | Mount cap, Rear cap, Lens case |
| Compatible Mounts | Canon EF mount, Nikon F mount |
Specifications, appearance, functionality, etc. are subject to change without prior notice.
* Use of the TC-X20 tele converter reduces the effective aperture by two f/stops.
** Length is the distance measured from the camera mount face to the lens mount face.
*** Entire Length is the distance between the tip of the lens and the tip of protrusion.

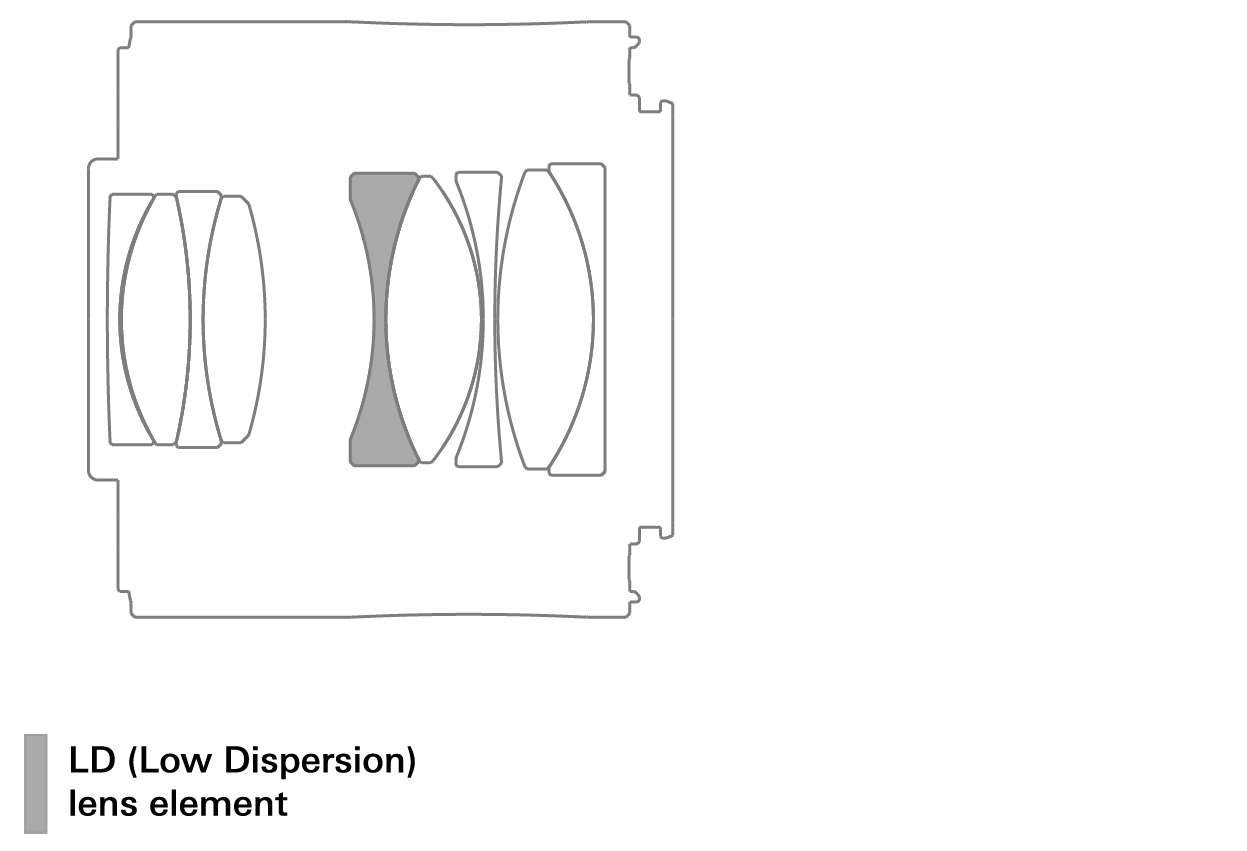

Lens Construction (9 elements in 5 groups)
