FA and Machine Vision Lenses
-

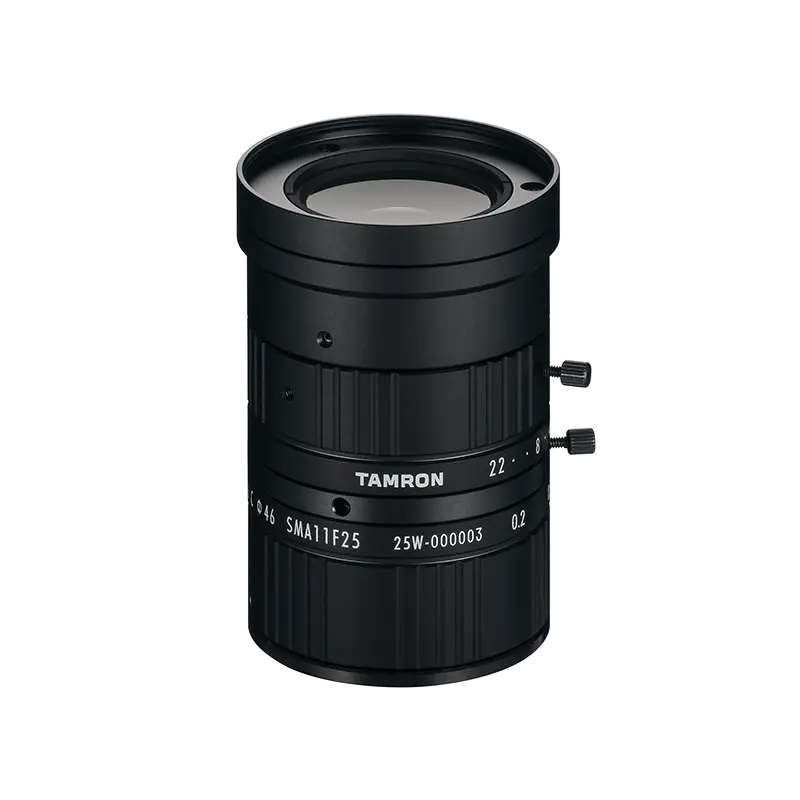

SMA11F25
-
NEW
-
-
2022.12
2050.01
Imager Size Focal Length Aperture Range Iris -
Focus Angle: 84°
IRIS Angle : 68°
| Model No. | SMA11F25 | ||
|---|---|---|---|
| Imager Size | 1" | ||
| Mount Type | C | ||
| Focal Length | 25mm | ||
| Aperture Range | F/1.6 - F/22 T/1.8 - T/24.7 |
||
| Field of View Angle (Horizontal x Vertical) |
1" | 29.1° x 21.9° | |
| 2/3" | 20.1° x 15.1° | ||
| 1/2" | 14.7° x 11.7° | ||
| Focus Range | 0.2m - ∞ | ||
| Operation | Focus | Manual w/lock | |
| Iris | Manual w/lock | ||
| Filter Size | M46 P=0.75 | ||
| Wave Length | 400 - 1700nm WBC-V-SWIR (Wide Band Coating-Visible-Short Wave Infrared) |
||
| TV Distortion | -1% (*) | ||
| Weight | 260g | ||
| Operating Temperature | -20°C - +60°C | ||
* Design Value
* Specificotions subjected to change without ony notice.
