Network Surveillance Camera Lenses
-
12VG1040ASIR
-
-
2022.09
2050.01
Imager Size Focal Length Aperture Range Iris -
| Model No. | 12VG1040ASIR | ||
|---|---|---|---|
| Imager Size | 1/2" | ||
| Mount Type | C | ||
| Focal Length | 10 - 40mm | ||
| Aperture Range | F/1.4 - 360 | ||
| Field of View Angle (Horizontal x Vertical) |
1/2" | Wide | 37.5° x 27.6° |
| Tele | 9.3° x 7.0° | ||
| 1/3" | Wide | 27.6° x 20.4° | |
| Tele | 7.0° x 5.3° | ||
| Focusing Range | 0.5m - ∞ | ||
| Operation | Focus | Manual w/lock | |
| Zoom | Manual w/lock | ||
| Iris | DC Auto Iris | ||
| Filter Size | - | ||
| Back Focal Distance | Wide : 12.166mm( in air ) Tele : 18.602mm( in air ) |
||
| Wave Length | Visible Light - Near lnfrared | ||
| Operating Voltage | OPEN : 3.0V CLOSE : 0.5V |
||
| Weight | 87g 士 4g | ||
| Operating Temperature | -20°C - +60°C | ||

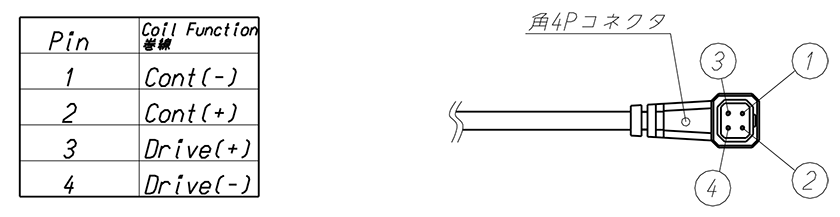

| Wiring Disgram |  |
||
* Specificotions subjected to change without ony notice.
