Network Surveillance Camera Lenses
-
12VG412ASIR
-
-
2022.09
2050.01
Imager Size Focal Length Aperture Range Iris -
| Model No. | 12VG412ASIR | ||
|---|---|---|---|
| Imager Size | 1/2" | ||
| Mount Type | C | ||
| Focal Length | 4.0 - 12mm | ||
| Aperture Range | F/1.2 - 360 | ||
| Field of View Angle (Horizontal x Vertical) |
1/2" | Wide | 93.7° x 68.9° |
| Tele | 31.2° x 23.4° | ||
| 1/3" | Wide | 68.9° x 51.1° | |
| Tele | 23.4° x 17.5° | ||
| Focusing Range | 0.3m - ∞ | ||
| Operation | Focus | Manual w/lock | |
| Zoom | Manual w/lock | ||
| Iris | DC Auto Iris | ||
| Filter Size | - | ||
| Back Focal Distance | Wide : 9.05mm( in air ) Tele : 18.90mm( in air ) |
||
| Wave Length | Visible Light - Near lnfrared | ||
| Operating Voltage | OPEN : 3.0V CLOSE : 0.5V |
||
| Weight | 68g 士 4g | ||
| Operating Temperature | -20°C - +60°C | ||

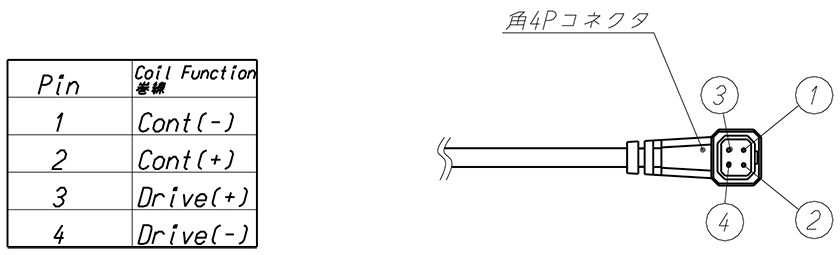

| Wiring Disgram |  |
||
* Specificotions subjected to change without ony notice.
