Network Surveillance Camera Lenses
-
M12VG412
-
-
2022.09
2050.01
Imager Size Focal Length Aperture Range Iris -
| Model No. | M12VG412 | |||
|---|---|---|---|---|
| Imager Size | 1/2" | |||
| Mount Type | C | |||
| Focal Length | 4.0 - 12mm | |||
| Aperture Range | F/1.4 - 360 | |||
| Field of View Angle (Horizontal x Vertical) |
1/2" | Wide | 93.9° x 68.8° | |
| Tele | 31.4° x 23.6° | |||
| 1/3" | Wide | 68.8° x 51.0° | ||
| Tele | 23.6° x 17.7° | |||
| Focusing Range | 0.3m - ∞ | |||
| Operation | Focus | Manual w/lock | ||
| Zoom | Manual w/lock | |||
| Iris | DC Auto Iris | |||
| Filter Size | - | |||
| Back Focal Distance | Wide : 9.05mm( in air ) Tele : 18.90mm( in air ) |
|||
| Wave Length | Visible Light | |||
| Operating Voltage | OPEN:3.0V CLOSE : 0.5V |
|||
| Weight | 69g ± 6g | |||
| Operating Temperature | 20°C - +60°C | |||

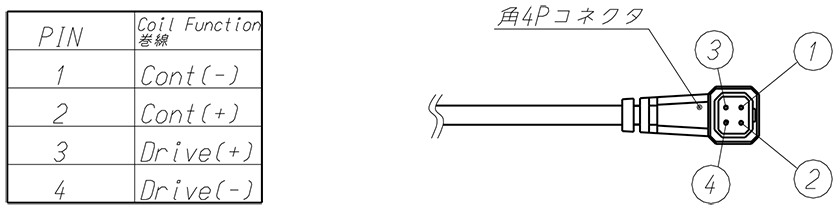

| Wiring Disgram |  |
|||
* Specificotions subjected to change without ony notice.
