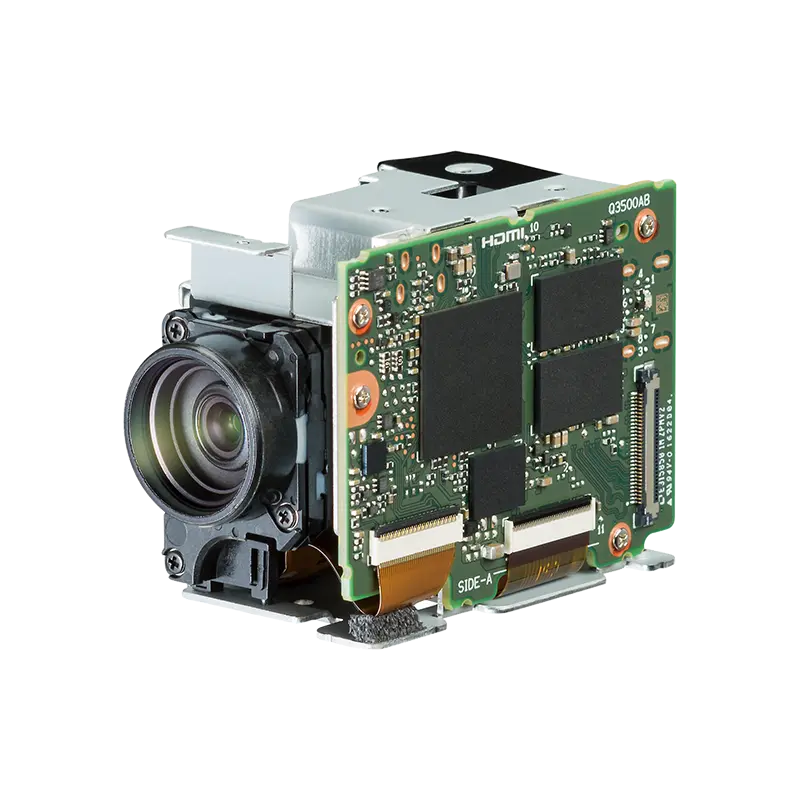

Camera module
-
MP3010M-EV
-
NEW
-
-
2022.08
2050.01
Output Pixels Horizonal Field of View(Wide-Tele) -
| Camera | |||||
|---|---|---|---|---|---|
| Image sensor | Sony's CMOS image sensor with STARVIS™ technology STARVIS is trademark of Sony Group corporation or its affiliates. |
Gamma | standard/straight/narrow/wide | ||
| Pixel output (H x V) | 1920 x 1080, 1280 x 720 | Aperture control | 16 steps | ||
| Signal system (HD) | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
White balance | ATW1(Narrow), ATW2(Wide), INDOOR, OUTDOOR, One push, Manual |
||
| Signal system(SD) |
NTSC/PAL |
AE (Auto exposure mode) |
Auto, Manual, Priority mode (shutter/iris) |
||
| Minimum illumination | 0.1 lx (1/30sec, F/1.8, 50%, Color, Typical) 0.025 lx (1/30sec, F/1.8, 50%, B&W, Typical) |
Lens (wide〜tele) | 10x optical zoom ｆ＝3.3〜33.0mm F/1.8〜3.4 | ||
| Recommended illumination | 100lx 〜100,000lx | Zoom mode | Standard/Variable/Direct | ||
| S/N | More than 50dB | Zoom movement speed (wide to tele) |
1.7 sec (Focus Tracking ON) | ||
| Gain | Auto/Manual | Digital Zoom | Up to 16x | ||
| Shutter speed | 1/1〜1/10,000 sec | Focusing system | Auto, Manual, One push, AF sensitivity | ||
| Sync system | Internal | Horizontal viewing angle (wide to tele) |
59.2° 〜 6.7°（※ except when EIS is operated） | ||
| Exposure compensation | -12dB 〜 +12dB ( Total 13 steps ) | Minimum object distance (wide to tele) |
Visible light︓10mm(wide)〜800mm(tele) 850nm ︓10mm(wide)〜1200mm(tele) |
||
| Backlight compensation | ON/OFF | ||||
| Functions | |||||
| EIS (Electronic Image Stabilization) |
OFF/ON | Picture effects (Black White) |
OFF/ON | ||
| Wide-dynamic range (Gamma) | OFF/ON | Picture freeze | OFF/ON | ||
| Day/Night (ICR) | OFF/ON/AUTO | Electronic Flip (E-Flip) | OFF/ON | ||
| Defog | OFF/ON (Level : 1〜3) | Mirror image | OFF/ON | ||
| Noise reduction (3D + 2D) | OFF/ON (Level : 1〜5) | Temperature readout | available | ||
| Privacy zone mask | Up to 8 places | Title display | OFF/ON (20 characters/line, max. 12 lines) |
||
| Slow shutter | OFF/ON (Max 1sec) | ||||
| General | |||||
| Power requirement | DC 8〜12±10% | Storage temperature | -40〜+60°C | ||
| Power consumption | Approx.2.5W (Approx.4.4W in the zoom and focus operation) |

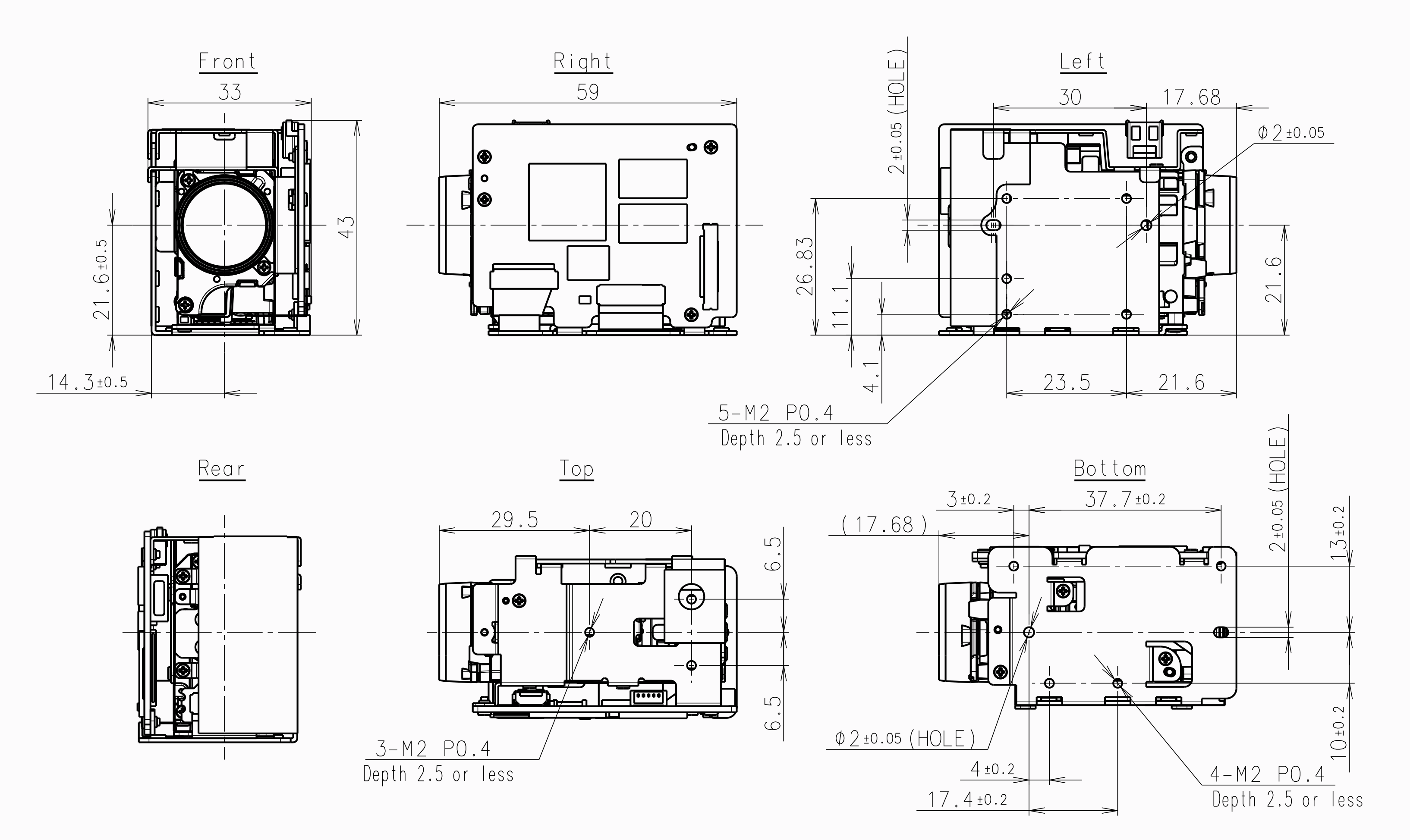

Dimensions (W x H x D) |
33 x 43 x 59 mm | ||
| Recommended temperature | 0〜+40°C | Weight | Approx.70g | ||
| Operating temperature | -5〜+60°C | ||||
| Operating humidity | 30%〜80% (no condensation) | ||||
| Interface | |||||
| Video output (HD) | LVDS : Digital Y/Pb/Pr 4:2:2 HDMI : Digital Y/Pb/Pr 4:2:2(HDMI Type D) ※The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. |
Camera control interface | VISCA protocol *VISCA is a registered trademark of SONY Corporation |
||
| Video output (SD) | CVBS 1.0V(p-p,75Ω) | ||||
* Specificotions subjected to change without ony notice.
