Network Surveillance Camera Lenses
-
13FG22IR
-
End of Sale
-
-
2022.09
2025.12
Imager Size Focal Length Aperture Range Iris -
| Model No. | 13FG22IR | ||
|---|---|---|---|
| Imager Size | 1/3" | ||
| Mount Type | CS | ||
| Focal Length | 2.2mm | ||
| Aperture Range | F/1.2 - 360 | ||
| Field of View Angle (Horizontal x Vertical) |
1/3" | 118.6° x 90.0° | |
| 1/4" | 90.0° x 67.9° | ||
| Focusing Range | 0.1m - ∞ | ||
| Operation | Focus | Manual w/lock | |
| Iris | DC Auto Iris | ||
| Filter Size | - | ||
| Bock Focal Distance | 7.58mm( in air ) | ||
| Wave Length | Visible Light - Near Infrared | ||
| Operating Voltage | OPEN : 2.5V CLOSE : 0.5V |
||
| Weight | 49g 士 3g | ||
| Operating Temperature | -20°C - +60°C | ||

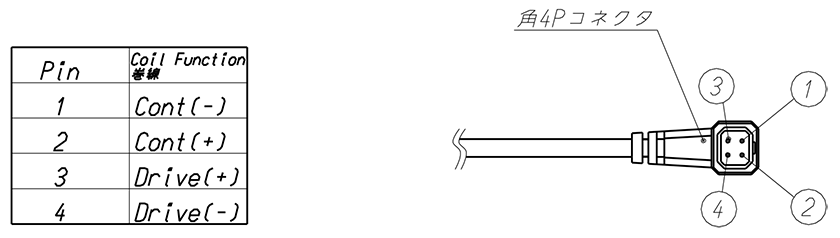

| Wiring Disgram |  |
||
* Specificotions subjected to change without ony notice.
