Network Surveillance Camera Lenses
-
13FG28IR
-
End of Sale
-
-
2022.09
2023.06
Imager Size Focal Length Aperture Range Iris -
| Model No. | 13FG28IR | ||
|---|---|---|---|
| Imager Size | 1/3" | ||
| Mount Type | CS | ||
| Focal Length | 2.8mm | ||
| Aperture Range | F/1.2 - 360 | ||
| Field of View Angle (Horizontal x Vertical) |
1/3" | 93.2° x 70.7° | |
| 1/4" | 70.7° x 53.4° | ||
| Focusing Range | 0.2m - ∞ | ||
| Operation | Focus | Manual wi/lock | |
| Iris | DC Auto Iris | ||
| Filter Size | - | ||
| Bock Focal Distance | 8.58mm( in air ) | ||
| Operating Voltage | OPEN : 2.5V CLOSE : 0.5V |
||
| Weight | 44g 士 4g | ||
| Operating Temperature | -20°C - +60°C | ||

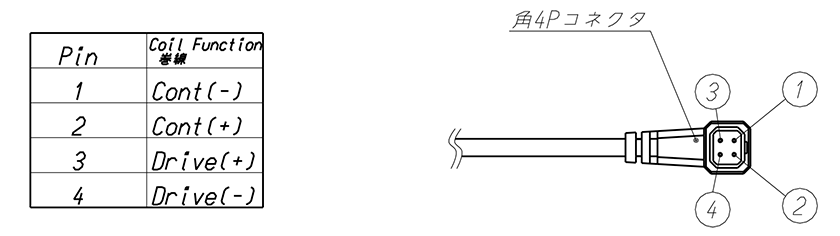

| Wiring Diagram |  |
||
* Specificotions subjected to change without ony notice.
