Network Surveillance Camera Lenses
-

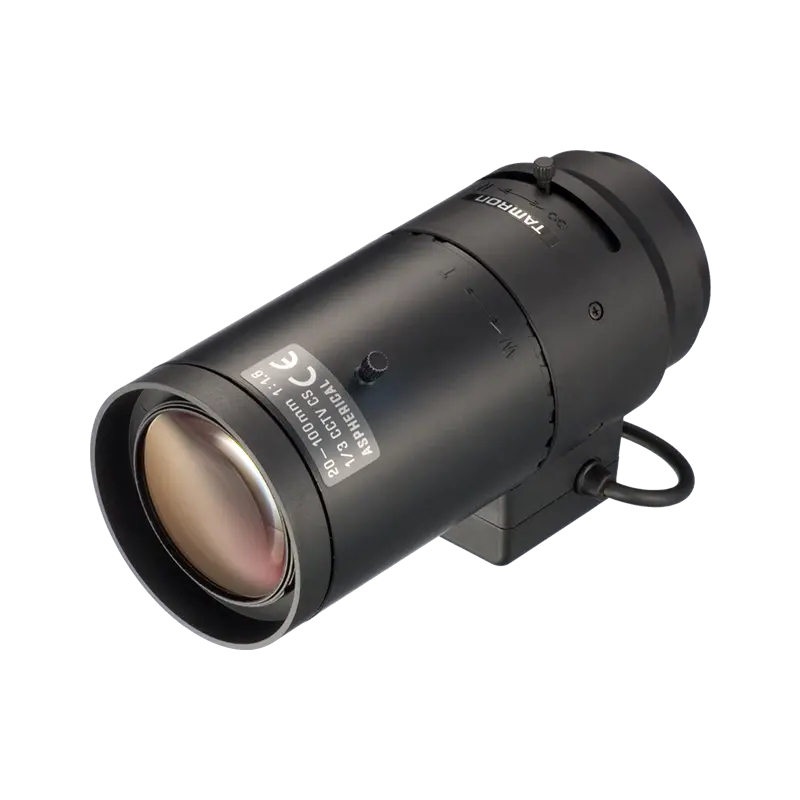

13VG20100AS
-
End of Sale
-
-
2022.09
2022.12
Imager Size Focal Length Aperture Range Iris -
| Model No. | 13VG20100AS | ||
|---|---|---|---|
| Imager Size | 1/3" | ||
| Mount Type | CS | ||
| Focal Length | 20 - 100mm | ||
| Aperture Range | F/1.6 - 360 | ||
| Field of View Angle (Horizontal x Vertical) |
1/3" | Wide | 13.6° x 10.2° |
| Tele | 2.8° x 2.1° | ||
| 1/4" | Wide | 10.2° x 7.6° | |
| Tele | 2.1° x 1.6° | ||
| Focusing Range | 1.0m - ∞ | ||
| Operation | Focus | anual w/lock | |
| Zoom | anual w/lock | ||
| Iris | DC Auto Iris | ||
| Filter Size | - | ||
| Back Focal Distance | Wide : 22.292mm( in air ) Tele : 18.298mm( in air ) |
||
| Wave Length | Visible Light | ||
| Operating Voltage | OPEN : 4.0V CLOSE : 0.5V |
||
| Weight | 156g 士 8g | ||
| Operating Temperature | -20°C - +60°C | ||

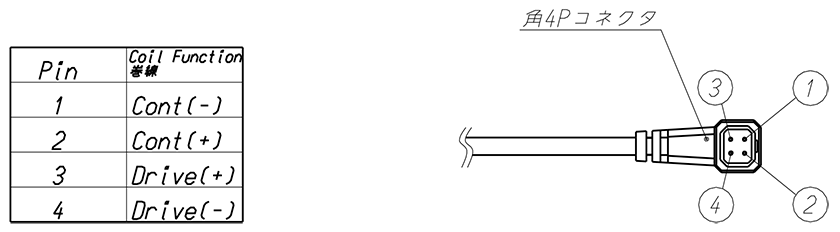

| Wiring Disgram |  |
||
* Specificotions subjected to change without ony notice.
