Network Surveillance Camera Lenses
-
13VG550ASII
-
-
2022.09
2050.01
Imager Size Focal Length Aperture Range Iris -
| Model No. | 13VG550AS II | ||
|---|---|---|---|
| Imager Size | 1/3" | ||
| Mount Type | CS | ||
| Focal Length | 5 - 50mm | ||
| Aperture Range | F/1.4 - 360 | ||
| Field of View Angle (Horizontal x Vertical) |
1/3" | Wide | 53.6° x 40.3° |
| Tele | 5.6° x 4.2° | ||
| 1/4" | Wide | 40.3° x 30.1° | |
| Tele | 4.2° x 3.1° | ||
| Focusing Range | 1.0m - ∞ | ||
| Operation | Focus | Manual w/lock | |
| Zoom | Manual w/lock | ||
| Iris | DC Auto Iris | ||
| Filter Size | - | ||
| Back Focal Distance | Wide : 10.05( in air ) Tele: 11.81mm( in air ) |
||
| Wave Length | Visible Light | ||
| Operating Voltage | OPEN : 4.0V CLOSE : 0.7V |
||
| Weight | 84g 士 4g | ||
| Operating Temperature | -20°C - +60°C | ||

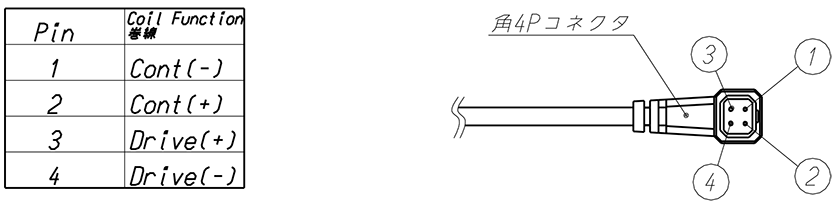

| Wiring Disgram |  |
||
* Specificotions subjected to change without ony notice.
