Network Surveillance Camera Lenses
-

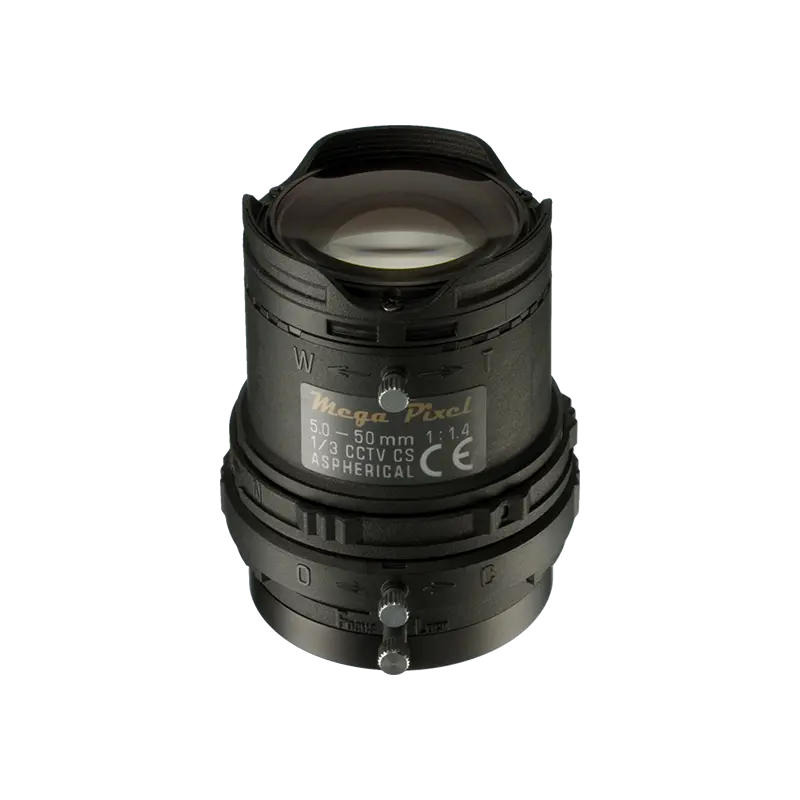

M13VM550
-
End of Sale
-
-
2022.09
2022.12
Imager Size Focal Length Aperture Range Iris -
| Model No. | M13VM550 | ||
|---|---|---|---|
| Imager Size | 1/3" | ||
| Mount Type | CS | ||
| Focal Length | 5 - 50mm | ||
| Aperture Range | F/1.4 - Close | ||
| Field of View Angle (Horizontal x Vertical) |
1/3" | Wide | 53.8° x 40.3° |
| Tele | 5.5° x 4.2° | ||
| 1/4" | Wide | 40.3° x 30.2° | |
| Tele | 4.2° x 3.1° | ||
| Focusing Range | 1.0m - ∞ | ||
| Operation | Focus | Manual w/lock | |
| Zoom | Manual w/lock | ||
| Iris | Manual w/lock | ||
| Filter Size | - | ||
| Back Focal Distance | Wide : 10.28mm( in air ) Tele：10.98mm( in air ) |
||
| Wave Length | Visible Light | ||
| Operating Voltage | - | ||
| Weight | 64g ± 4g | ||
| Operating Temperature | -20°C - +60°C | ||
* Specificotions subjected to change without ony notice.
