| Angle of View (diagonal) | 108°44'-60°2' (for APS-C format)  |

|---|---|
| Optical Construction | 16 elements in 11 groups |
| Minimum Object Distance | 0.24m (9.4 in) |
| Maximum Magnification Ratio | 1:5.3 |
| Filter Size | Φ77mm |
| Maximum Diameter | Φ83.6mm |
| Length* | 84.6mm / 3.3 in  (Canon) 82.1mm / 3.2 in (Nikon)  |

| Weight | 440g / 15.5 oz  (Canon) 440g / 15.5 oz (Nikon)  |

| Aperture Blades | 7 (circular diaphragm) |
| Minimum Aperture | F22-29 |
| Image Stabilization Performance | 4 Stops (CIPA Standards Compliant) For Canon: EOS-80D is used Nikon: D7200 is used  |

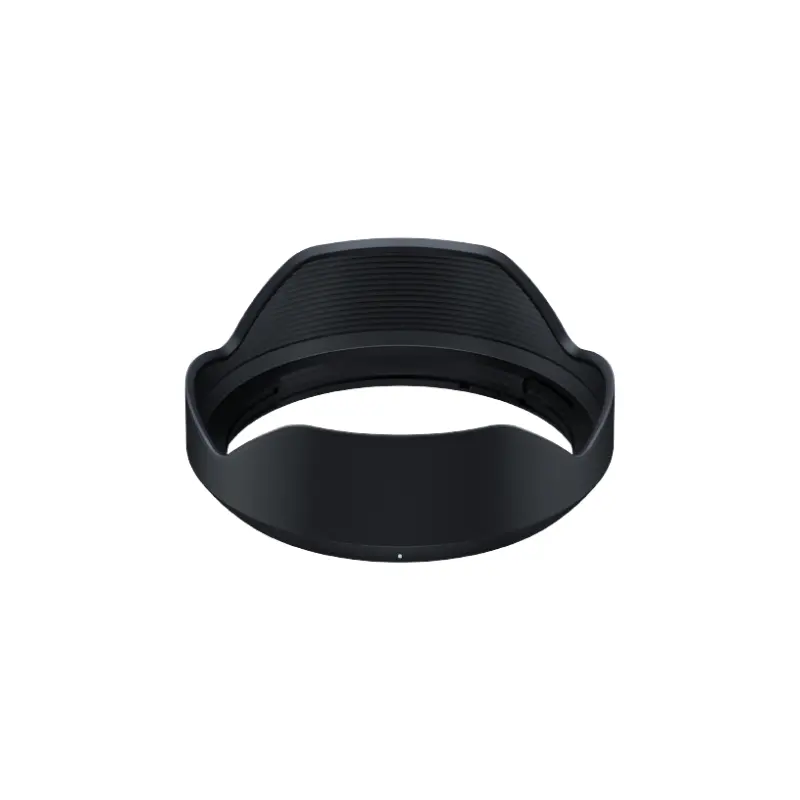

| Standard Accessories | Lens hood, Lens caps |

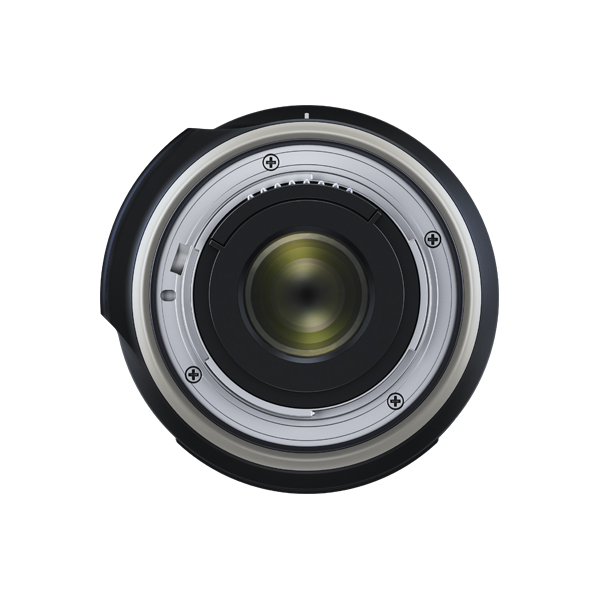

| Mount | CANON EF Mount (End of sale) NIKON F Mount (End of sale)  |

| Release Date |
									 March 3, 2017 (NIKON F Mount) March 23, 2017 (CANON EF Mount)  |

Specifications, appearance, functionality, etc. are subject to change without prior notice.
* Length is the distance from the front tip of the lens to the lens mount face.
All DSLR camera functions are possible when the Model F045 is attached to a mirrorless camera via the manufacture’s adapter.
Please visit our support website for details:
https://www.tamron.com/global/consumer/support/
For information about compatibility with Nikon Z series cameras, check here
For information about compatibility with Canon EOS R series cameras, check here
For information about compatibility with other cameras, check here
